PS3 Console Game Disc USB Drive Emulator

New Product release 2013 for the PS3 game console . The 3k3y disc Emulator is a device that can run any game disc ISO you have direct from a USB hard drive. your ISO image must be dumped on the hard drive. the ISO image is a file that is identical to the disc you own.
Region Free Unlocking is Now Possible

Do you have games or movies that are region locked ?? that at the moment cannot be played on your game console. well now its possible with the 3k3y ODE emulator
With the Ripper add-on board, (connection of your PS3 DVD drive direct to a PC running windows operating system) You can dump the game disc to a USB hard drive
Once you have this image on your hard drive it can be Patched to allow region free playback, including Blu ray movies, PS3 games, PSX (original Play station games).

Read this to see if its right for your console

I have a PS3 Slim Model

Will Not work on the PS3 slim model consoles check regularly for updates though as this will be resolved with a future 3k3y Hardware update

Will it work on my Phat model PS3

will only work on certain Phat model PS3 consoles. The later model PS3 console use a membrane connector that is thinner than the original type these models are not compatible as yet. a hardware adapter will be available soon that will allow the connection of the drive check here for compatibility

You need your drive key

You Also need your DVD drive key to be inserted into the micro SD card of the 3k3y The Drive Key needs to be extracted from the Console at this stage. the only way to get these keys is if you are running CFW, then install and the run a PGK File From the PS3 console called eEID_RKDumper.pkg
this will extract your unique DVD drive key If you are running 3.56 or higher you need to downgrade here........

Whats this DVD drive key stuff

Every PS3 console has unique serial number, CPU and disc drive keys (These Numbers need to match), the DVD drive controller board is married to the PS3 main board, so swapping a complete drive with another console just wont work the disc drive needs to match the console with the correct keys.

1- Your Console needs to be FAT for 3k3y to work

2- Your console needs to be a phat model CECHC02,CECHG02, CECHK02, CECHH02 CECHJ02

3- your console needs to be running CFW or Software Version 3.55 or lower for key extraction, if higher than 3.55 downgrading the software is an option more here......

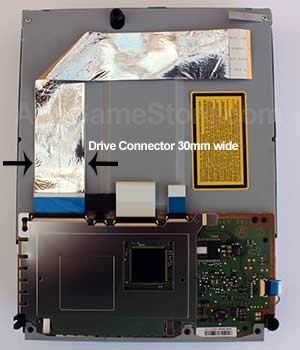

4- your DVD drive cable needs to look like this below

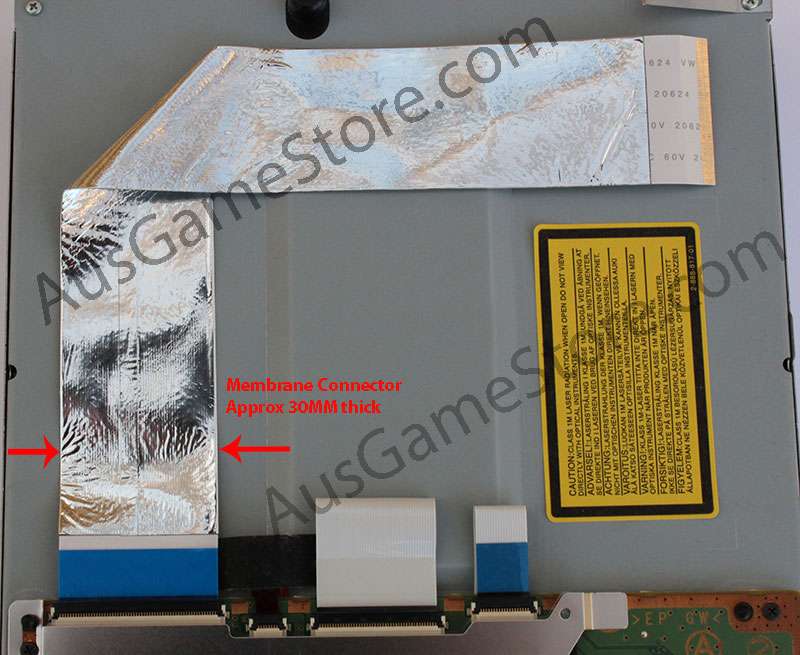

Underside of a PS3 DVD drive showing the wide 30mm membrane cable that connects the Blu ray drive to the pS3 motherboard the X3k3y is connected in series with the white connector allowing full drive emulation on any firmware version

Connections From The PS3 to the 3KEY
3k3y Connections to the PS3 DVD drive, main board & Power





The Optical USB drive emulator For The PS3 Console

The complete Board and LCD screen display

Current features available on the 3k3y ODE device

• Play your PS3, PS2* and PSX games from any USB media!
• No custom firmware required for operation** - you can update to the latest official firmware for PSN access
• User friendly intuitive interface
• Hardware and software for high-speed game ripping to PC requires the ripper board
• no soldering required
• Multi-language support
• Compatible with both Fat and soon Slim models
• Supports most file systems, including NTFS, EXT2/3/4, and Mac OS X Extended
• High speed USB2 interface
• Powerful embedded Linux system running from Micro SD card (included)
• Linux firmware fully updatable from USB media
• FPGA fully updatable from USB media via built-in, in-system JTAG programming
• Recovery mode - it is always possible to recover from a bad flash Update your PS3 as normal, no CFW or game patching required
• Pass-through mode. (Use your PS3 in "normal mode")

The 3k3y ripper Game dump board
This Item is required to dump the PS3 game disc directly to the hard drive more info here

Take Note Before Calling Us

Slim Model PS3 is not compatible at this stage

Currently firmware 3.55 is required for extracting the PS3 drive key. Once the key has been extracted the PS3 can be updated to any official or custom firmware. The 3k3y team are working on hardware methods for extracting keys from PS3's already on 4.x firmware
Check your current firmware here....

If your Firmware is above 3.55 there is a method of downgrading to version 3.55, however not all consoles are compatible with this method Check here for downgrading
