The Matrix trident will allow your Xbox to start up 3 different ways simply with the flick of a switch
Option 1 - Your console will start up standard un-modded for safe xbox live playing, use with a un-modded hard drive
Option 2- Start your console fully modded reset glitched with a custom dashboard including homebrew apps using an external USB drive that can be removed when option 1 is selected
Option -3 Start your console with Xell to extract Vital unique console keys including CPU or DVD keys, unlocking the unique console specific Keyvault when used with J runner software, download Version 278 Here........
Note that only option 1 is Xbox live safe used with a standard un-modded hard drive
The TRIDENT will transform your Xbox360 16 MB NAND in 3 independent 16 MB banks that can be read and write with any available SPI reader/writer solution using software tools like Nandpro 2.0 and Nandpro 3.0.
The trident can work together with any Glitcher solution present in the market.
A flat cable is supplied to directly connect it to the Matrix GLitcher II, for enhanced performances.

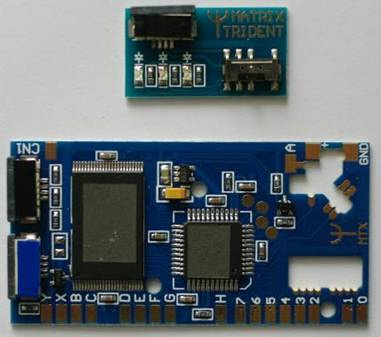

It features a quick solder board solution for the Trinity slim and an external switch with led indicators to quickly choose which one of the THREE banks of NAND to use.
With the Matrix Trident you can assign one bank to the Original NAND, the second bank to boot a modified dashboard and the third NAND bank to boot Xell or a second dashboard.
Whether you use it for fun or for hacking purposes, the Trident is going to be the tool of choice to add extra NAND capacity to your Xbox360.
FEATURES:
- Allows for the use of 3 Independent banks of NAND on the Xbox 360.
- No need to cut any tracks on the Xbox360 motherboard.
- Extenal switch to quickly change among the 3 NANDs
- Compatible with every glitching solution present in the market, including Matrix Glitcher II.
- Compatible with any xbox360 with 16 MB NAND.
- Easy to install thanks to quicksolder point design.
- Blocks can be read / write with any SPI hardware present in the market.
- Compatible with Nandpro 2.0 and 3.0 software.
Installation Diagram for SLIM Xbox360 is already available in the DOWNLOAD section of the website. Other models diagram will be uploaded in few hours. A complete installation Tutorial and usage for the MATRIX TRIDENT will be online by tomorrow.
Finally an announcement for console owners that had the RGH feature disabled due to recent 14717 dashboard upgrade:
FAT Xbox360:
A new solution to re-enable RGH and Trident Style additional NAND on Fat consoles is under advanced development.
SLIM Xbox360:
A working solution is already under test and we will release it right after completing all the needed tests. Fortunately, due to hardware difference, the changes on Slim were not drastically as the one implemented on the Fat.
[/QUOTE]
Matrix Trident Official Website - http://infinitymod.com/
