Jtag including 500 GB hard drive installed $199.00

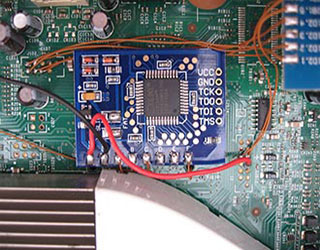

Matrix Glitch Modchip Installed In a Xbox 360 Phat Console

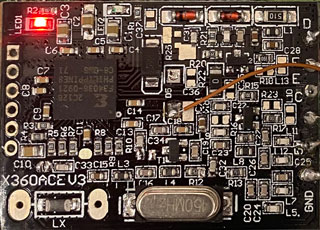

Ace 360 Reset Glitch Modchip

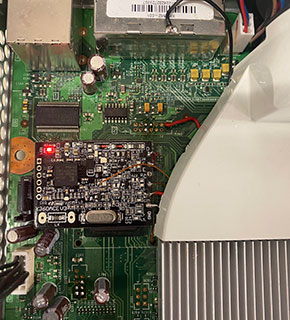

Ace 360 install in a Xbox 360 Phat console
Allowing you to start your console with a custom dashboard.
Access to the full console system is obtained. Running of Snes Nintendo or 1000's of MAME arcade games straight from the hard drive.
Region Unlock play all NTSC games from US or Japan.
Install any game direct to the hard drive.
All security protection is fully unlocked allowing you full access to the console hardware.
Xbox live is not possible but Running X-link for Online gaming is simple
A Jtag Xbox 360 Console allows the dumping of the NAND flash, the software that operates the console dashboard. Once the nand dump is checked a modded nand image can be flashed to the console to obtain CPU keys and various console information. With this information the console can be unlocked to allow the installation of Linux and Homebrew applications for region unlocking or App. installation on a large capacity hard disk drive. Most Apps can be freely downloaded from sites like Free60.org or Xbox scene, then usually installed to your modded Xbox via USB pen drive or direct FTP from a home computer. Custom dashboards like Freestyle dash have most Homebrew Apps installed and are run from the dashboard. Some consoles need to be Reset Glitch Modded to allow Freestyle dash Install while other Model consoles cannot be modded at all Check here first
The Reset Glitch Chip is installed inside the Xbox 360. There are solder connections to be made to various points on the motherboard. Booting time's will vary between each console, due to the fact un-signed code needs to be executed at a precise time during boot.
Console starts up with the CPU clock slowed down a small reset pulse is sent to the CPU this causes the CPU not to reset fully but changes the way code is executed a modified boot-loader that was flashed to the NAND runs code If the code execution fails the chip resets the console, the cycle starts again until a successful boot is obtained with the custom dashboard starting. This resetting can sometimes take up to 2 minutes to run. Usually our mods boot within 10-20 seconds
The Latest Ace 360 Development chip can be programmed with unique timing files to fine tune RGH installs. With this it allows better compatibility with different model consoles. timing files are simply transferred via a PC, great to experiment with and customize your own boot up times. There is improved wiring points on the motherboard that needs to be done known as RGH Version 1.2. This is compatible with all Xbox 360 models except the later model slim 360 E, motherboard codename Winchester. This model xbox uses a new processor XCGPU combining the EDRAM and patches the Reset Glitch Hack. This model cannot be Glitched.
