Sony FAT Playstation 3 Power Supply Service


PS3 Phat power supply

When a PS3 console will not start & has no red power light display on the front panel, there is a good chance
The internal switched mode power supply unit has failed.
more commonly know as the PSU commonly used in the old style 40 60 and 80Gig model PS3 consoles in Australia commonly known as the FAT model Playstation 3

Phat Model PS3 Phat Model PS3 Console

These old style power supply units (PSU) unlike the PSU used in the newer slim Model consoles, are very reliable & rarely fail most original PS3 consoles over 4 years old have power supplies still functioning flawlessly today.
these were build well thick PCB & quality components with high temperature ratings a true work horse with years of proven reliability

We usually have the old style replacement PSU in stock always on hand ready to be fitted by our service engineers.
The installation process requires dismantling the PS3 console and usually takes 1 hour to complete including cleaning the complete cooling system


All replacement units come with a 12 month warranty, Once replaced though will never fail again
Even with the PS3 in standby with the red power light displayed, the power supply unit is operational
Therefore its always good practice to turn the power off at the back switch of the console
This totally disconnects all mains power to the PSU preventing any mains power surges from destroying the PSU not to mention reduce green house gas emissions and also reduce your electricity bill


ps3 phat power supply close-upThese power supply units are build to outlast the life of the console more about Playstation power Supply Here....

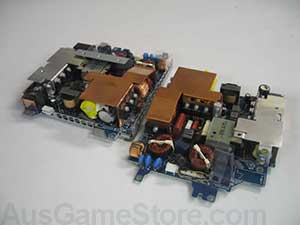

Sony Playstation 3 model CECHC02 60Gb Internal Switched Mode Power Supply Modules

PS3 Power Supply ModulePS3 Phat Model Switched power Supply Unit


Our Playstation 3 FAT Power supply Repair Service is Same Day These PSU are always in stock however, different console models use different power supply modules Check your PS3 console Model here, Replacing these PSU requires dismantling the console and will void the manufacturer warranty The job is usually done in 40 minutes same day the PS3 arrives at our store. We are located in Melbourne Australia postal Delivery service is available for interstate customers

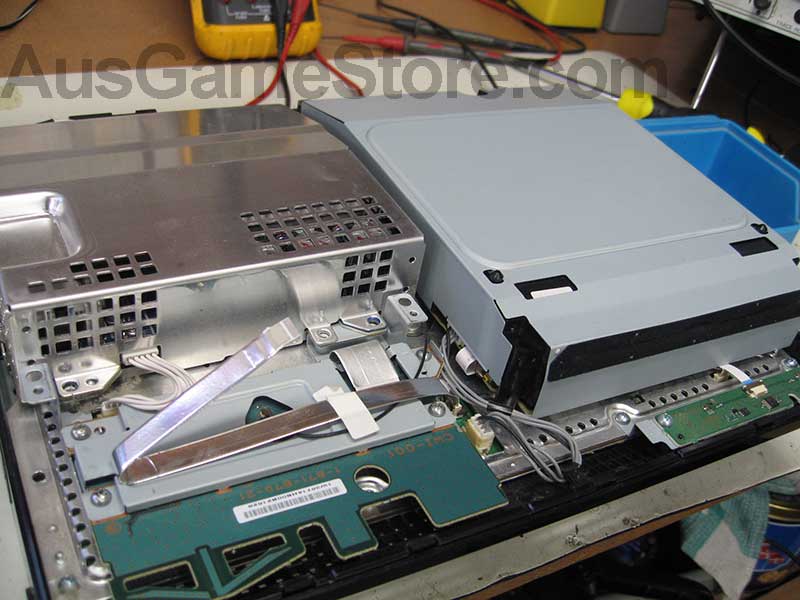

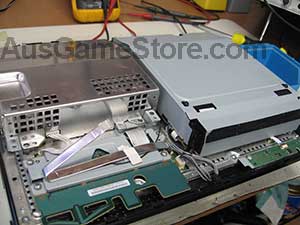

ps3 phat cover removed The PS3 with the top cover removed exposing the power supply on the Left and the DVD drive to the right

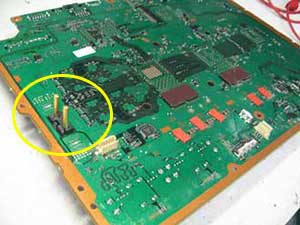

PS3 board power pins Circled in yellow the power supply connects to these two pins on the main board of the console

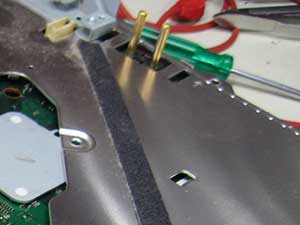

ps3 power supply pinsTruly well built The PS3 power Pin connections are gold plated to ensure minimal resistance and good contact is made to the PSU
